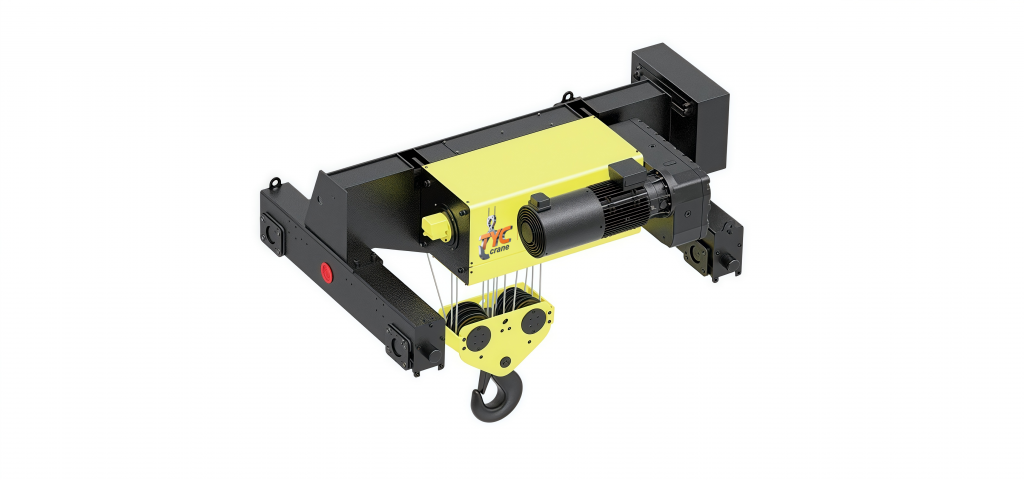

Double Girder TWH8 Series
32t capacity double girder hoist
Back to Category TYC Wire Rope Hoist
PRODUCT FEATURES
Ultra heavy duty design
12/2 reeving system
High capacity lifting
Dual trolley motors
LOADING CAPACITY
Rated Capacity
32000 kg
Lifting Height
6m / 9m / 12m / 15m / 18m
PRODUCT PARAMETER
Parameter
Value
Rated Capacity
32000 kg
Lifting Height
6m / 9m / 12m / 15m / 18m
Working Class (FEM/GB)
2m (M5)
Reeving
12/2
Lifting Speed
3.3m/0.8min
Lifting Motor Power
5/20 kW
Trolley Speed
5-20 m/min
Trolley Motor Power
2*1.3 kW
KEY FEATURES
Ultra heavy duty design
12/2 reeving system
High capacity lifting
Dual trolley motors
